Configuration
Whistle Classifier
Configuration
The Detection / Whistle Classifier menu has two sub menus: Settings… and Discriminant Function Training…
Settings Menu

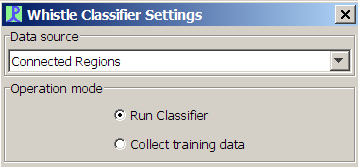

From the settings menu a dialog will appear, the top half of which will contain a drop down list of data sources and buttons to select the operation mode.
Data Source
Select the data source. This should be the connected regions output from a Whistle and Moan detector.
Operation Mode
Select either Run Classifier, in which case new detections from the Whistle and Moan detector will be fragmented and the fragments sent for classification, or Collect Training Data in which case the contours of detected whistles will be stored for Discriminant Function Training
