Calibration

Analog Array Sensors

Calibration

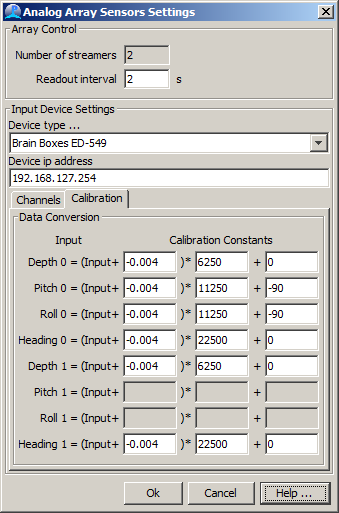

Go to Settings>Analog Array Sensor Settings… and click on the calibration tab.

For each channel enter calibration constants which will convert the measured voltage or current into a Depth, Pitch, Roll or Heading. These all follow a simple linear formula:

Depth (or heading, or pitch or roll) = (measured value + constant 1) * constant 2 + constant 3

There is some redundancy in this formula, but this is intended to make it easier to enter the correct calibration values. For example, if you were using a 4 - 20mA depth sensor which had a nominal maximum depth of 100m, the values would be calculated as follows:

The first value is simply the 4mA offset on the reading, so set it to -0.04

The second value is the range of the sensor (100m) divided by the range of the input device (16mA) so set it to 100/0.016 = 6250.0.

The third value can be left at zero

Now consider the consequences of finding that there is a 3.2m offset in the depth readings. You could recalculate the first two constants, which would become -0.0045 and 6250. Much more simple will be to adjust the third parameter by the measured offset, leaving the first two alone, i.e. the three parameters become -.004, 6250 and 3.2.

If you require a non-linear calibration, please contact the PAMGuard development team.
