Quick Spectrogram Annotations

Overview

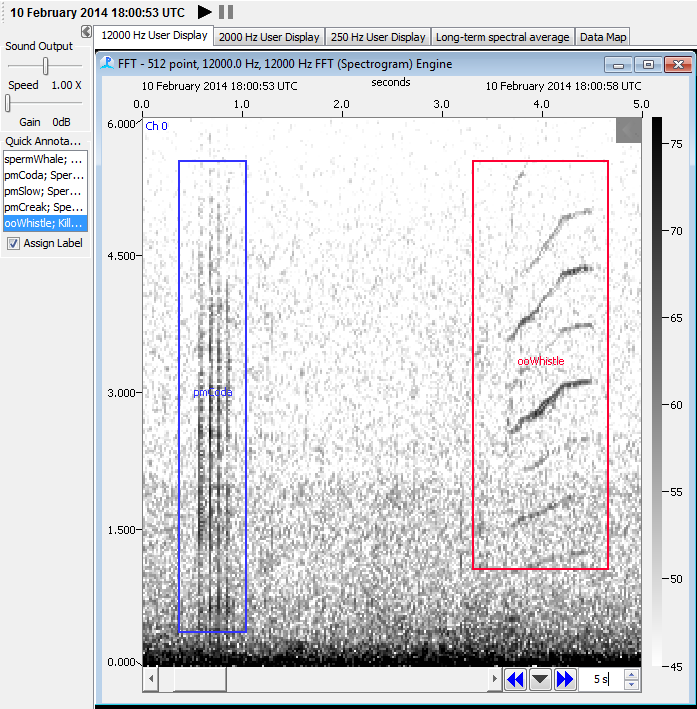

Quick Spectrogram Annotations are an extension that builds upon the more basic Spectrogram Annotations and allow the user to make marks on the spectrogram display and add a small amount of text to go with each mark.

They can be used either in real time or offline using the PAMGuard viewer

Data from the marks are stored in the PAMGuard Database.
